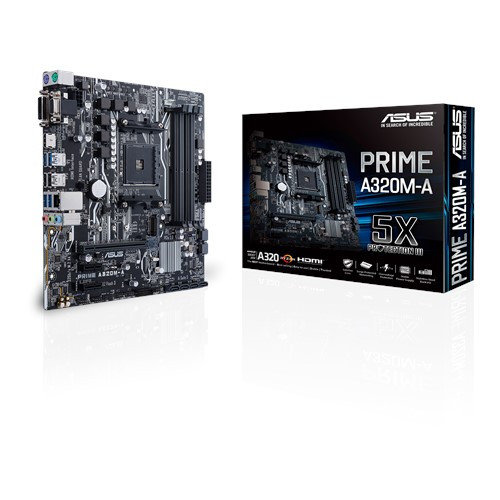

Материнская плата ASUS PRIME A320M-A, фото 1
Материнская плата ASUS PRIME A320M-A, фото 2Материнская плата ASUS PRIME A320M-A, фото 3

Материнская плата ASUS PRIME A320M-A

  • В наличии
  • Код: 147371

31 490 Тг.

Материнская плата ASUS PRIME A320M-A
Материнская плата ASUS PRIME A320M-AВ наличии
31 490 Тг.
Купить
+7(707)702-60-50
  • +7(727)328-7-328
Купить
+7(707)702-60-50
  • +7(727)328-7-328
  • День Время работы Перерыв
    Понедельник 10:00 — 19:00
    Вторник 10:00 — 19:00
    Среда 10:00 — 19:00
    Четверг 10:00 — 19:00
    Пятница 10:00 — 19:00
    Суббота 10:00 — 15:00
    Воскресенье Выходной

    * Время указано для региона: Казахстан, Алматы

  • +7(707)702-60-50
    +7(727)328-7-328
    КазахстанАлматыул. Кожамкулова 128
    +7(707)702-60-50
    +7(707)702-60-50

Материнская плата ASUS PRIME A320M-A AM4, 4xDDR4, 6xSATA3 1xM.2 1xDVI 1xHDMI 1xDP mATX

  • Процессор

    AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors

    *Refer to www.asus.com for CPU support list
    Поддержка 8 -ядерных процессоров

  • Чипсет

    AMD A320

  • Оперативная память

    AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
    4 x DIMM, Max. 64Гб, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Memory *1
    AMD 7th Generation A-Series/Athlon X4 Processors
    4 x DIMM, Max. 64Гб, DDR4 3200(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Memory
    Двухканальная Memory Architecture
    *Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    *Refer to www.asus.com or this user manual for the Memory QVL (Qualified Vendors Lidts).
    ECC Memory (ECC mode) support varies by CPU.

  • Графика

    Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU *2
    Multi-VGA output support : HDMI/DVI/RGB ports
    - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 2048 MB (for iGPU exclusively)

  • Слоты расширения

    AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
    1 x PCIe 3.0/2.0 x16 (x16 mode) *3
    AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors
    1 x PCIe 3.0/2.0 x16 (x8 mode)
    AMD A320 chipset
    2 x PCIe 2.0 x1

  • Хранилище данных

    AMD A320 chipset :
    4 x SATA 6Gb/s port(s), (Gray),
    Support Raid 0, 1, 10
    AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-Series/Athlon X4 Processors :
    2 x SATA 6Gb/s port(s), (Gray),
    AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*4
    AMD 7th Generation A-Series/Athlon X4 Processors :
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*5

  • Локальная сеть

    Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

  • Аудио

    Realtek® ALC887 8-Channel High Definition Audio CODEC

  • Порты USB

    AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-Series/Athlon X4 Processors :
    4 x USB 3.1 Gen 1 port(s) (4 at back panel, (Blue))
    AMD A320 chipset :
    2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
    AMD A320 chipset :
    6 x USB 2.0 port(s)

  • Эксклюзивные особенности

    ASUS 5X Protection III :
    - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM: 6 Phase digital power design
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - PC Cleaner
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    - Multi-language BIOS
    ASUS Q-Design :
    - ASUS Q-Slot
    - ASUS Q-DIMM

  • Поддержка операционной системы

    Windows® 10

  • Разъемы на задней панели

    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x DVI-D
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    4 x USB 3.1 Gen 1 ((Blue))
    2 x USB 2.0
    3 x Audio jack(s)

  • Разъeмы на плате

    1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
    1 x COM port(s) connector(s)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x Chassis Fan connector(s) (1 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Clear CMOS jumper(s)
    1 x Speaker connector

  • Аксессуары

    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD

  • BIOS

    128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control

  • Операционная система

    Windows® 10 64-bit

  • Форм-фактор

    mATX Form Factor
    9.6 inch x 9.45 inch ( 24.4 cm x 24 cm )

  • Примечание

    1*Due to the limitation of AMD Ryzen™ processors, memory frequencies higher than DDR4 2666 MHz are supported only when using one DIMM per channel.
    2*AMD Ryzen™ Processor does not support.
    3*The working speed of the PCIe 3.0/2.0 x16 slot varies by models.
    4*When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports.
    5*When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports
